50 Dripper Solar Powered Irrigation System Twice a Day Watering

1. What This System Does

• A solar-powered automatic drip irrigation system for home gardens.

• Designed for all Potted plants, Vegetable Gardens and Hydroponic Solutions

• Waters plants twice per day automatically:

  • Once in the morning (sunlight detected)

  • Once in the evening (darkness detected)

• No external electricity needed.

2. Key Features

This unit can be converted to connect to an existing standard 12mm/19mm poly trickle system using your existing pipework and drippers provided that the number of drippers and volume of water required does not exceed the unit specifications by simply joining the supplied main line to your 12mm dripper line.

• Powered by a 4W / 12V solar panel

• Built in Battery back up

• Supports 20–50 adjustable drippers

• Each dripper can be adjusted individually

• 5 watering modes (watering time per session):

  • 0.5 min / 1 min / 2 min / 4 min / 8 min

• Built-in water level sensor stops the pump when water is low

• Automatic battery charging (Ni-MH 7.2V)

3. Main Components

• Control unit (pump + electronics)

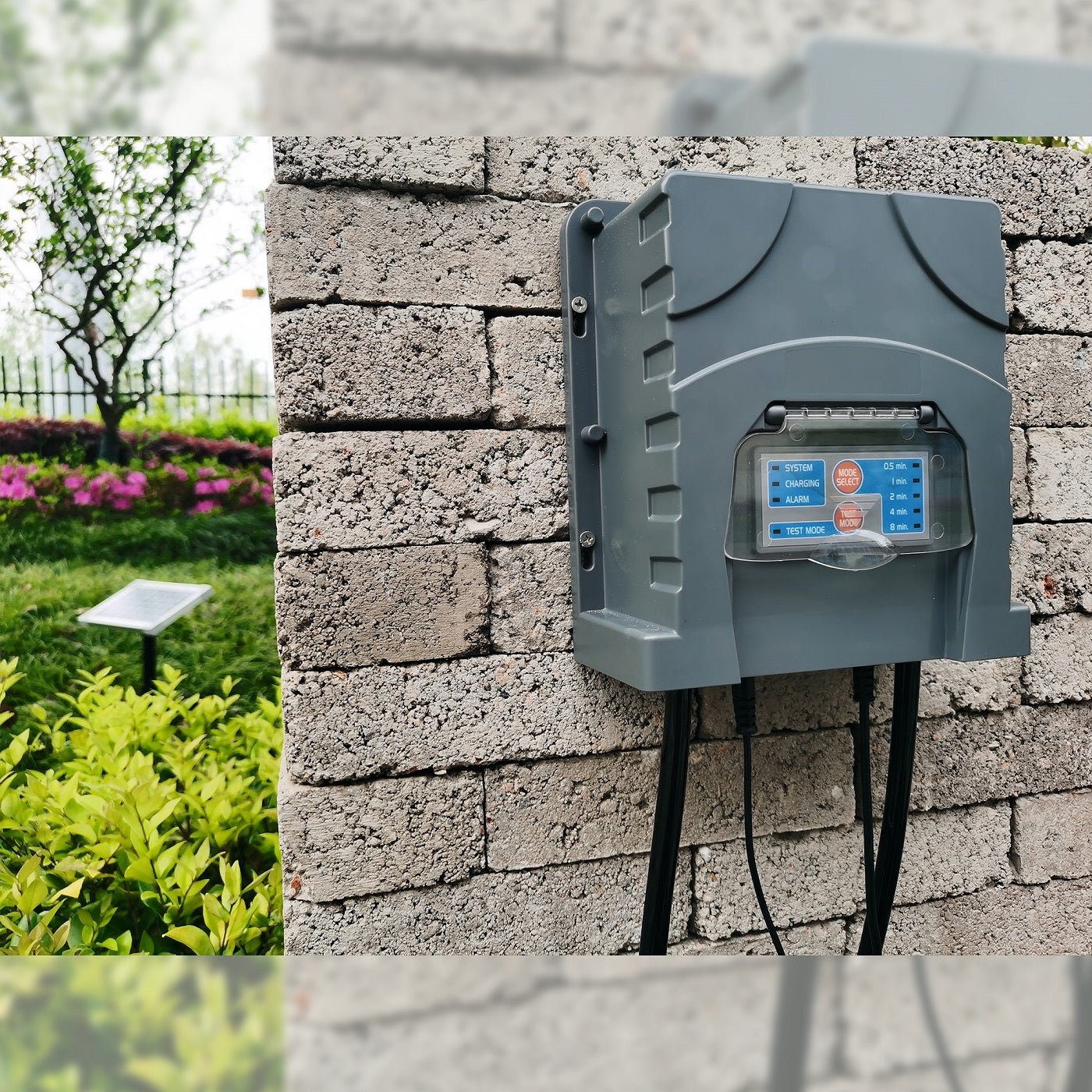

• Solar panel with ground spike

• Water level detector

• Filter

• Siphon breaker

• Main supply hose 7m in length (8 mm) Maximum suggested length

• Distribution hose 48m in length for take off lines (4 mm )Maximum suggested length

• Tee connectors, end caps, earth rods

• 50 adjustable drippers (2 L/h max)

4. Installation Overview

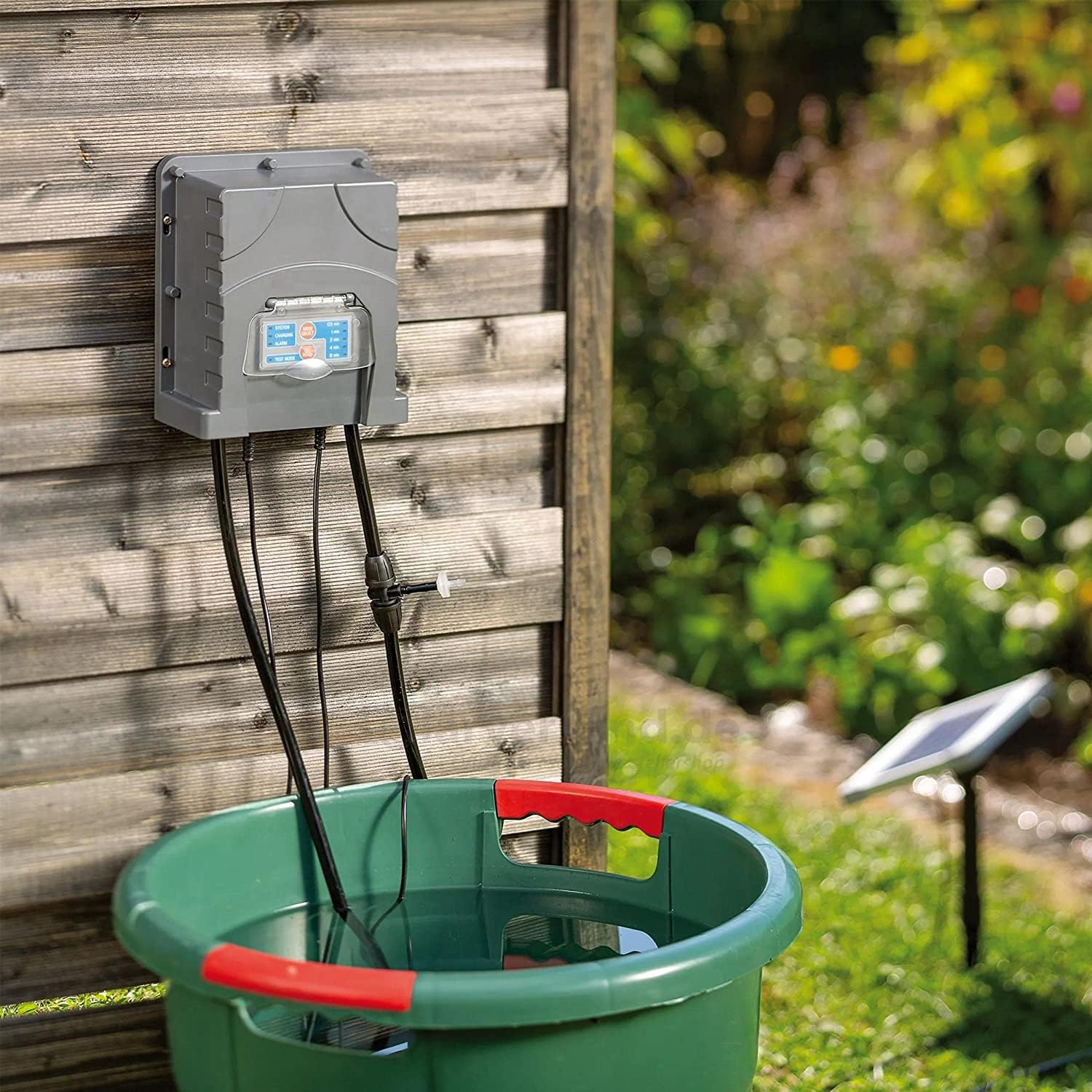

1. Place control unit:

   • Vertical is recommended

   • Above max water level but within 2 m of reservoir bottom


2. Install solar panel:




   • Point toward midday sun

   • Avoid artificial light sources



3. Set up water intake:

   • Place filter + water level detector at reservoir bottom

4. Connect siphon breaker:

   • Between control unit and main water line

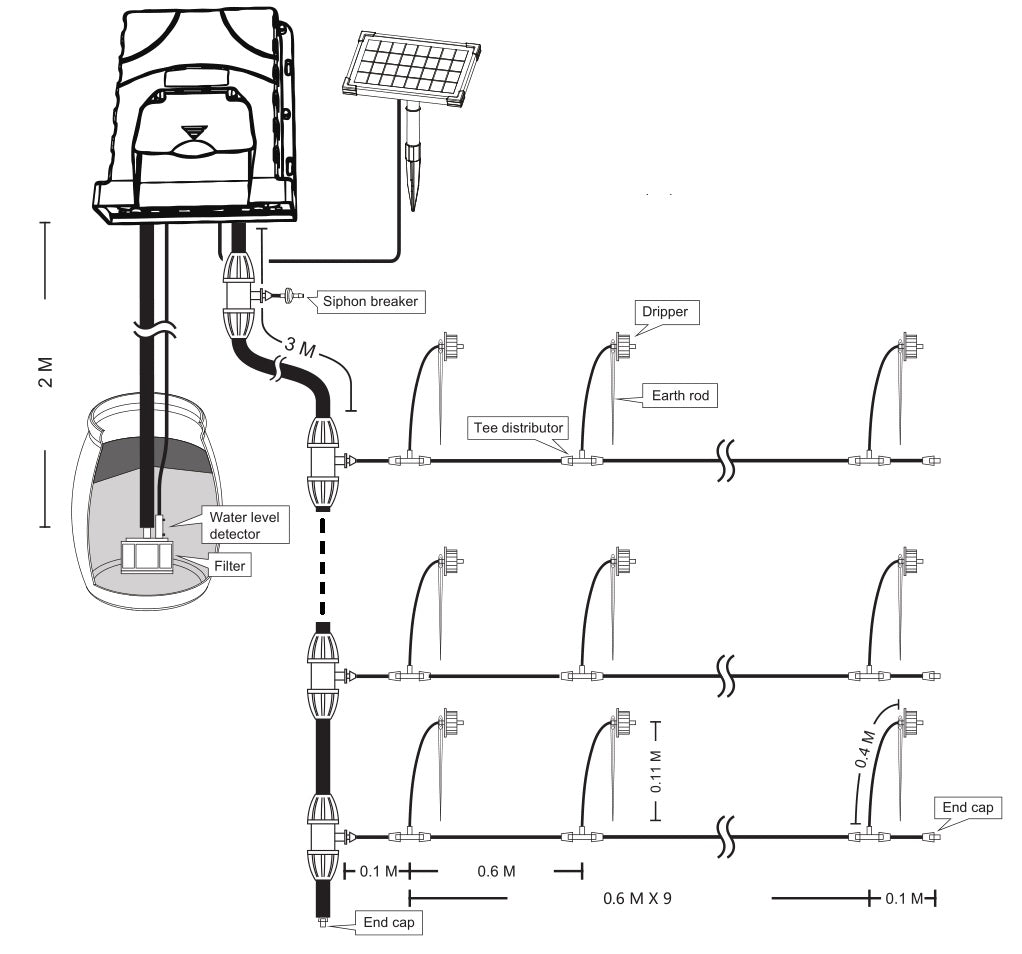

5. Lay water lines:

   • Main supply line (8 mm)

   • Distribution lines (4 mm)

6. Install drippers:

   • Near plants using ground stake

⚠️ Important: At least 20 drippers must be connected to avoid over-pressure.

5. Operation

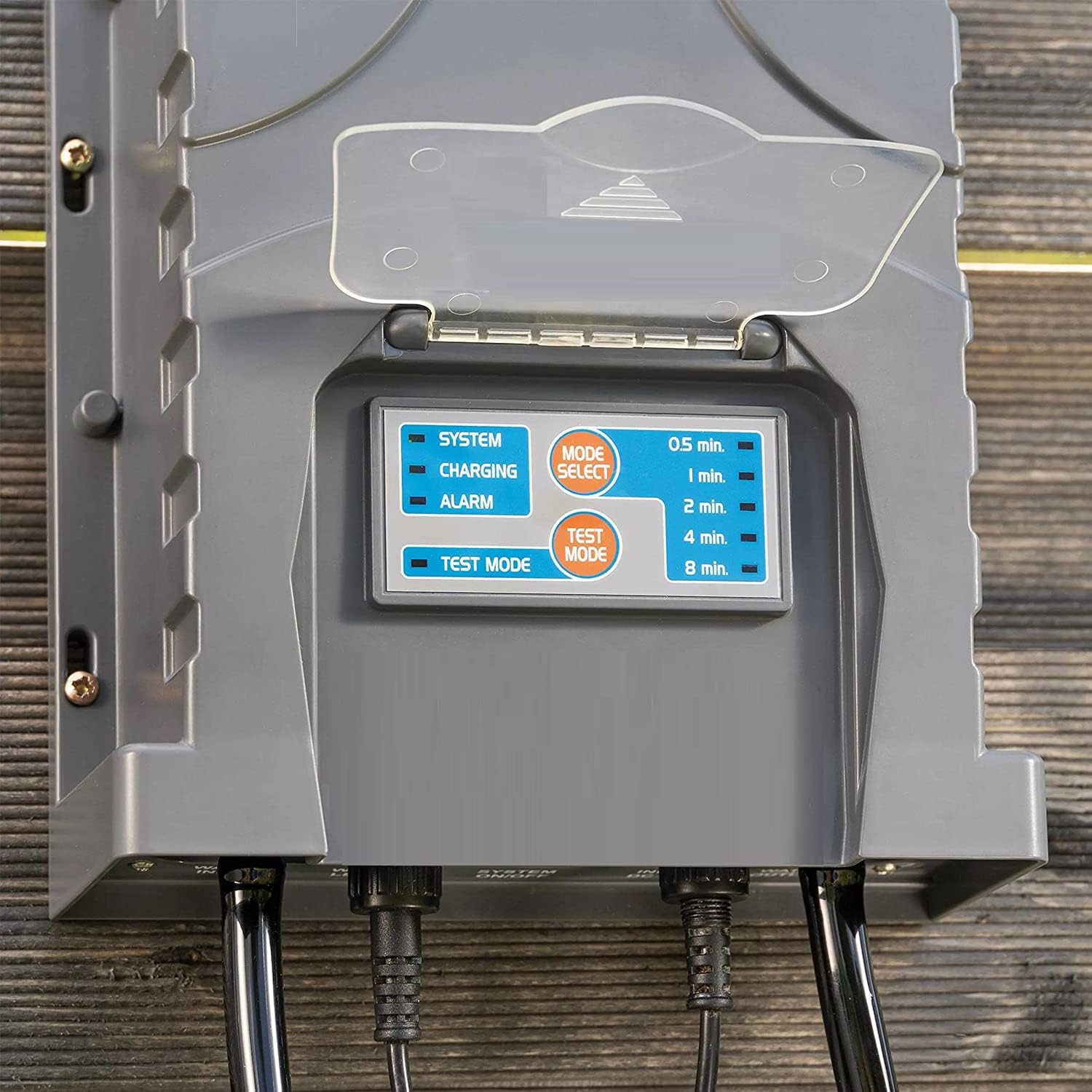

1. Turn SYSTEM ON/OFF switch ON

2. Check SYSTEM indicator:

   • Green = ready

   • Yellow = charging

   • Red = battery empty

3. Use TEST MODE to manually test water flow

4. Select watering time using MODE SELECT.

5. Adjust each dripper’s flow as needed

6. Watering Performance (Max)

• Per dripper: up to 0.67 L/day

• All drippers combined: up to 21.3 L/day

• Water amount depends on:

  • Number of drippers

  • Selected watering time

  • Dripper flow settings

7. Maintenance & Troubleshooting

• Red flashing ALARM → refill water reservoir

• Clean:

  • Filter

  • Water level sensor

  • Drippers (if blocked)

• If watering time becomes shorter → replace battery

• If battery doesn’t charge → check solar panel position and wiring

8. Safety & Cautions

• Do not modify the system (voids warranty)

• Pump must operate in water only

• Avoid dirty water with particles

• Keep system frost-free in winter

•  Use hot water only to heat water line if requited)

9. Technical Specs (Quick View)

• Drippers: 20–50 pcs

• Area: 10–20 m²

• Pump pressure: 0.4 MPa

• Solar panel cable: 3 m

• Battery: Ni-MH AA, 1500 mAh (7.2 V)

                                                              PUMP SPECS
