No Pipework or Drippers Included

Automatic Solar Watering for Gardens, Pots, Raised Beds & Hydroponic Systems

Water your garden automatically with the power of the sun.

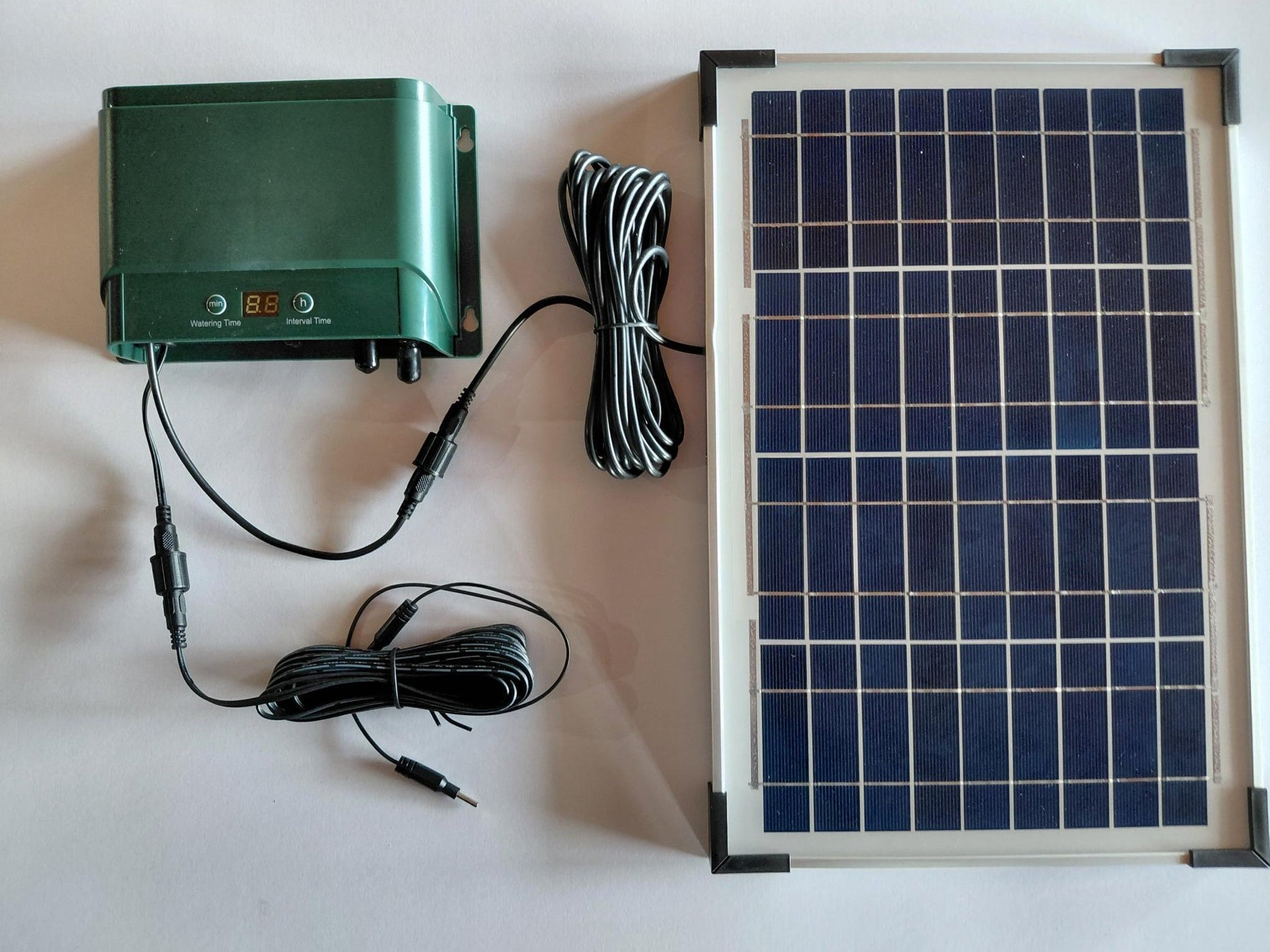

The Verti Gro Australia Solar Powered Automatic Drip Irrigation System provides automatic watering for potted plants, vegetable gardens, raised beds, vertical gardens, greenhouses and hydroponic systems.

With no mains power required, a built-in rechargeable battery and flexible watering programs, it can operate approximately 20–30 x 2 litre-per-hour drippers, depending on pipework, layout and water requirements.

Please Note: Irrigation pipework, fittings and drippers are not included, allowing you to configure a new system or connect to existing irrigation.

Watering Options

6 watering intervals: Every 3, 6, 12, 24, 48 or 72 hours

Watering Time: Adjustable from 1–30 minutes per cycle.

Key Features

·        Fully automatic solar-powered irrigation

·        6 programmable watering intervals

·        1–30 minute adjustable watering time

·        No mains electricity required

·        Built-in rechargeable battery backup

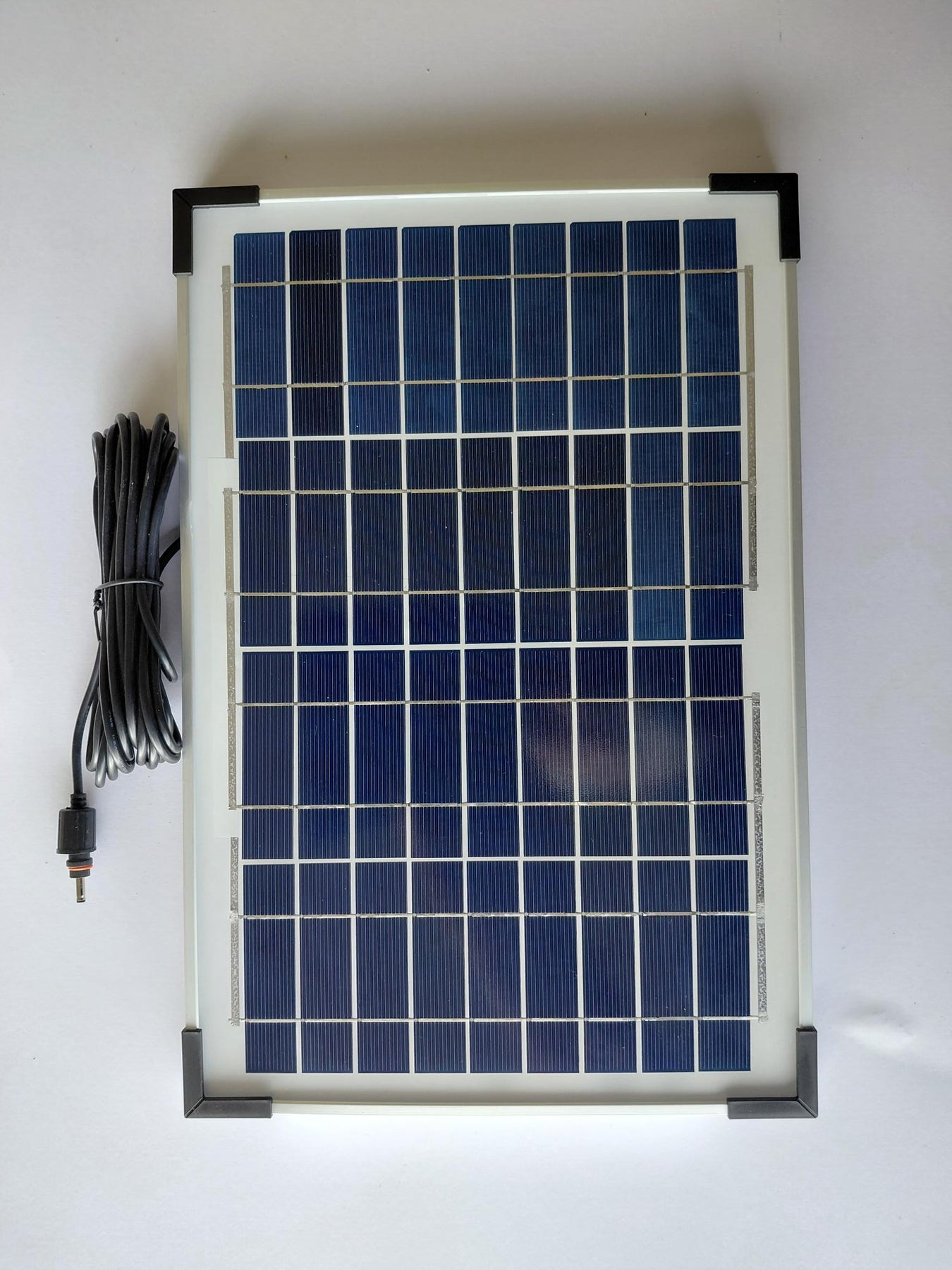

·        Powerful 10W solar panel

·        Supports approximately 20–30 x 2L/hour drippers

·        Water level sensor with automatic pump protection

·        Suitable for hydroponic nutrient solutions

·        Easy DIY installation

·        Flexible and expandable irrigation layout

·        Connects to existing 12mm or 19mm poly irrigation systems

Connect to Your Existing Irrigation System

The unit can be connected to an existing 12mm or 19mm poly drip irrigation system, allowing you to use your current pipework and drippers or install new pipework as required.

Important: Pipe length, size, number of drippers and total water demand must remain within the pump's operating capacity.

Pipework, fittings and drippers can be supplied on request and are also readily available from major hardware and irrigation stores.

Call Roger for more information regarding installation, dripper numbers or suitability for your irrigation system.

Simple Installation

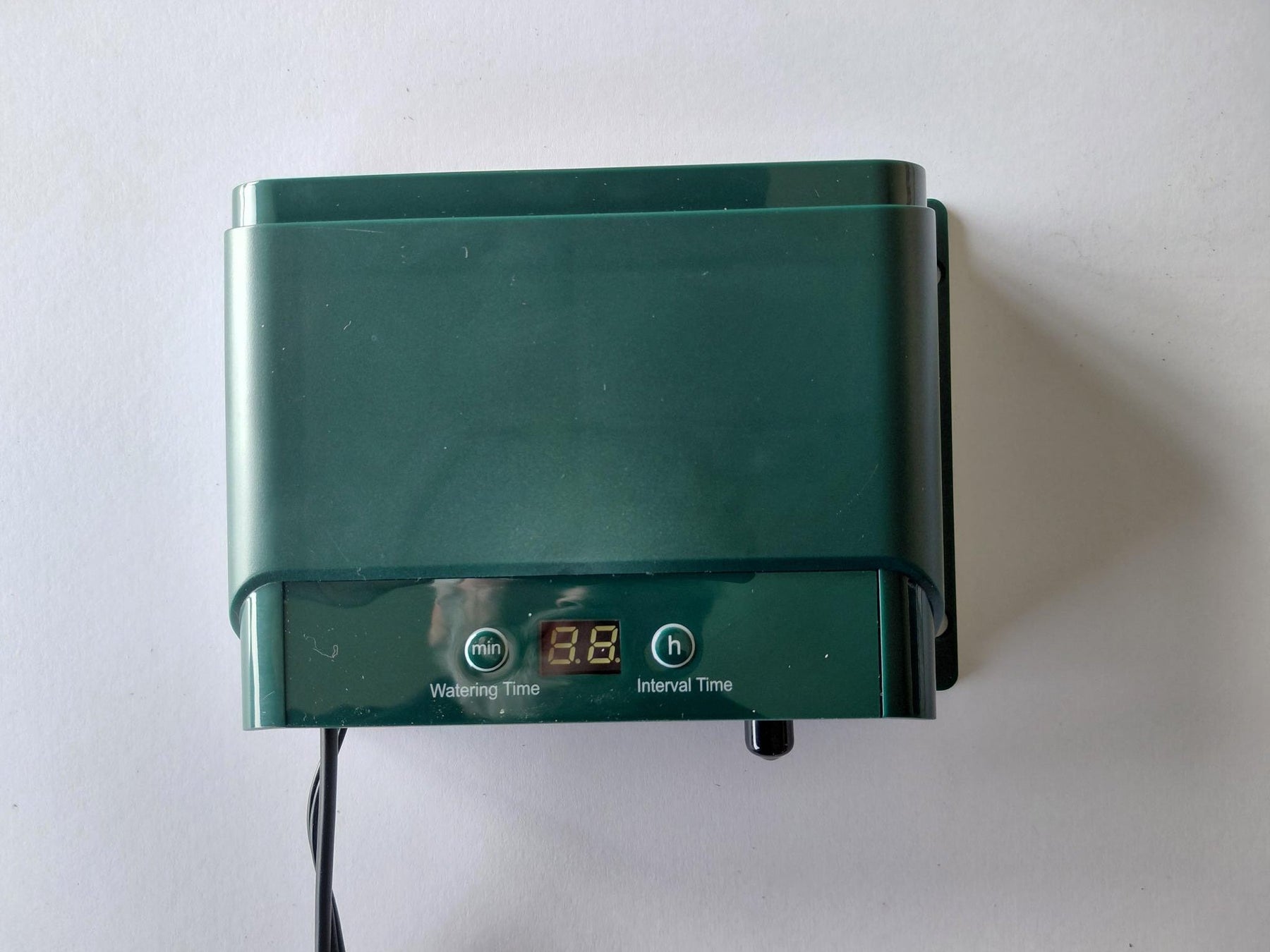

1.     Mount the control unit above or close to the water reservoir.

2.     Position the solar panel in maximum direct sunlight, preferably facing the midday sun.

3.     Place the water inlet/filter and water level sensor into the reservoir.

4.     Connect your irrigation pipework.

5.     Install and position the required drippers.

6.     Select your watering interval and watering time.

Avoid heavy shade and artificial light sources around the solar panel.

Pump Specifications

Important

This product is supplied as the solar-powered control and pumping system only. Pipework, fittings and drippers are not included.

This allows you to connect to existing irrigation or choose your own pipe size, drippers and layout, with the flexibility to expand the system as your garden grows.

For assistance with your irrigation layout or system suitability, contact Verti Gro Australia before ordering.
